In the demanding world of heavy industry, equipment often operates under extreme conditions characterized by heavy radial loads, moderate axial loads, and unavoidable shaft misalignment. Spherical Roller Bearings are specifically engineered to thrive in these environments. Their unique internal geometry allows them to self-align, ensuring smooth rotation even when the shaft and housing are not perfectly concentric.
As a leading bearing factory and bearing manufacturing company in China, UKL Bearing Manufacturing Co., Ltd. (Wuxi) provides high-performance spherical roller solutions designed for maximum service life. With our modernization base and 15 years of export expertise, we deliver precision-engineered components that keep global industries moving.
The Engineering Behind Spherical Roller Bearings

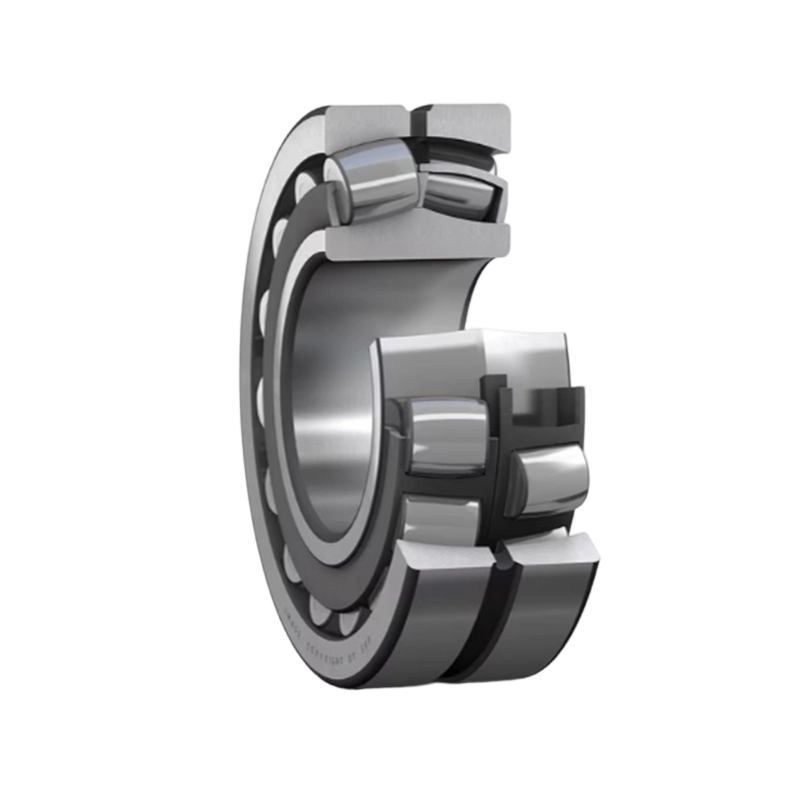

A Spherical Roller Bearing features two rows of symmetrical barrel-shaped rollers, which run in a common spherical outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis.
This design provides three critical advantages:
- Self-Alignment: The bearing can compensate for angular misalignment of up to 2° to 3° without increasing friction or reducing bearing life.
- Exceptional Load Capacity: Due to the long, large-diameter rollers and the high degree of conformity between rollers and raceways, these bearings offer the highest load ratings among all roller bearing types.
- Robustness: They are inherently resilient to shock loads and vibration, making them the standard choice for “dirty” and “tough” industries.
Technical Configurations & Design Variants
At UKL, we manufacture a wide range of spherical roller bearings to meet specific operational requirements, focusing on cage design and bore types.
| Design Feature |
Description |
Best Application |
| CC Design |
Two window-type steel cages, a flangeless inner ring, and a guide ring. |
High speeds and heavy radial loads. |
| CA Design |
One-piece machined brass cage, retaining flanges on inner ring. |
Heavy shock loads and vibration-heavy environments. |
| MB Design |
Two-piece machined brass cage guided on the inner ring. |
Precision applications requiring low noise and high stability. |
| K Bore |
Tapered bore (1:12 or 1:30 ratio). |
Used with adapter or withdrawal sleeves for easy mounting. |
| W33 Feature |
Lubrication groove and three holes in the outer ring. |
Standard for efficient relubrication and heat dissipation. |
The UKL Advantage: Precision Manufacturing in China
Since our founding in 2020, UKL Bearing Manufacturing Co., Ltd. has combined the agility of an integrated trading enterprise with the technical depth of a modernized production facility.
1. Material Purity and Heat Treatment
The secret to a durable spherical roller bearing lies in the steel. We use high-purity, vacuum-degassed GCr15SiMn steel for larger sizes. Our heat treatment process involves specialized salt-bath quenching, which ensures the raceways possess high surface hardness while maintaining a tough core to resist cracking under shock loads.
2. Advanced Grinding and Super-Finishing
To minimize heat generation and maximize lubricant film thickness, our rollers and raceways undergo super-finishing. This process achieves a sub-micron surface finish, reducing the coefficient of friction and significantly extending the fatigue life of the bearing compared to standard industrial products.
3. 15 Years of OEM/ODM Export Experience
We understand the global landscape. Our team of over 200 skilled professionals manages the entire manufacturing process—from forging and turning to automated assembly. This vertical integration allows us to offer flexible, customized services for clients in Europe, Asia, and the Middle East, including custom clearances (C3, C4) and specialized vibration-resistant designs for vibrating screens.
4. Rigorous Quality Inspection
Operating under strict ISO standards, every UKL bearing is tested for dimensional accuracy, radial clearance, and rotational vibration. This commitment ensures our products meet the “exceptionally high demands for precision and reliability” expected by our global partners.
Applications in Global Heavy Industry
Our high-capacity spherical roller bearings are the trusted choice for:
- Mining & Construction: Crushers, vibrating screens, and conveyors.
- Steel Mills: Continuous casting machines and rolling mills.
- Paper & Pulp: Drying cylinders and press rolls.
- Marine & Energy: Main propulsion shafts and wind turbine gearboxes.
Frequently Asked Questions (FAQ)
1. When should I choose a “Tapered Bore” (K) Spherical Roller Bearing?
Tapered bore bearings are ideal when you need to mount a bearing on a smooth shaft using an adapter sleeve, or when you need to adjust the internal radial clearance precisely during installation. They are much easier to dismount in heavy machinery compared to cylindrical bores.
2. What is the benefit of a Brass Cage (CA/MB) over a Steel Cage (CC)?
Brass cages are highly recommended for applications with heavy shock loads, high vibration, or marginal lubrication. They offer better friction characteristics and superior structural integrity under centrifugal forces compared to pressed steel cages.
3. How does UKL ensure its bearings can handle vibrating applications?
For vibrating screens, we produce the “223 Series” with special tolerances and reinforced cages. These bearings are designed with a tighter bore and outer diameter tolerance to handle the intense acceleration and high-frequency vibrations of mining equipment.
4. Can Spherical Roller Bearings handle axial loads?
Yes. While they are primarily designed for heavy radial loads, their inclined rollers allow them to support axial loads in both directions. However, if the axial load is excessive, it may be better to consult with our technical team to verify the load ratio.
5. How does UKL support urgent replacements for global clients?
As an integrated industrial and trading enterprise, we maintain a strategic buffer stock of the most common sizes (222, 223, 230, 231, and 232 series). Combined with our 15 years of export experience, we can provide rapid quotes and expedited shipping to minimize your downtime.
